Hydrogen is the most abundant element in the universe. The sun and other stars consist mostly of hydrogen, but on earth, there are almost no natural sources of molecular hydrogen. It is usually found as a part of larger molecules such as water or organic compounds. Making hydrogen comes down to taking the hydrogen out of these organic compounds.
Hydrogen can be produced using renewable energy sources such as wind or solar power by using electrolyzers. These are essentially reverse fuel cells, and produce hydrogen by splitting water into oxygen and hydrogen. Hydrogen is used as an energy carrier and presents a viable energy storage solution, particularly for balancing the renewable energy grid.
Laboratory Develops Self Sustaining Biofuel Recovery
When burned, hydrogen produces only heat and water, hence the name hydrogen: “water-former” in Greek. In our fuel cell systems, we convert the hydrogen into water in a more controlled manner, producing electricity instead of flames. Still, the only byproduct of the reaction is water.
When used in our fuel cell systems, hydrogen is combined with oxygen (gathered from the ambient air surrounding the system) to transform the chemical energy stored in the fuel (hydrogen) and oxidizer (oxygen) into electrical energy and water vapour. The electrical energy gained from this electrochemical reaction can be used to power every application.

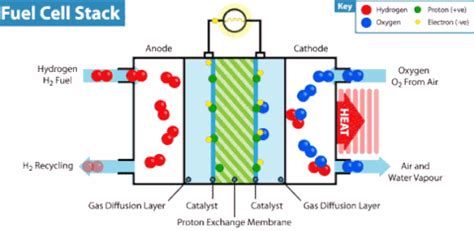

The infographic below shows this process in more detail. Hydrogen enters the fuel cell on the top left and splits into two protons and two electrons at the anode side. Hydrogen that doesn’t react is recirculated. The protons pass through the proton exchange membrane (PEM) in the middle, while the electrons take a detour. The electrons taking this detour provide the electrical energy used to power the application. On the right side of the PEM, at the cathode side, oxygen (O2) is split up and meets up with the protons and electrons. The protons and electrons together form hydrogen (H2), which bonds to the oxygen, resulting in water (H2O).
Microbial Fuel Cells
Hydrogen fuel cell technology is especially attractive for applications that combine a demand for high continuous power output with long operational uptimes. Current alternative energy storage systems, such as battery technology, require long charging times and the costs of these systems scale linearly with the required energy content. Twice the amount of energy requires twice the amount of batteries, costing twice as much. For hydrogen-electric systems, only the amount of hydrogen storage has to be doubled, the fuel cell remains the same. Additionally, these operations benefit strongly from the quick refueling capabilities hydrogen fuel cell systems offer.
To configure the optimum zero-emission power-system for our clients, we mostly deploy fuel cell hybrid systems, combining hydrogen fuel cell technology with a small battery energy storage. This battery energy storage acts as a buffer between the fuel cell and the powered application.
The results are uniquely designed fuel cell hybrid systems combining the best of both hydrogen and batteries, allowing for short refuelling times and long continuous operations at high energy demands, while being able to facilitate high peak loads without delay at a competitive overall system cost. The configuration, integration and operational control of these client-specific systems are our key competence.
Solid Oxide Fuel Cell
This website uses cookies to improve your experience. We'll assume you're ok with this, but you can opt-out if you wish. Cookie settingsACCEPT
This website uses cookies to improve your experience while you navigate through the website. Out of these cookies, the cookies that are categorized as necessary are stored on your browser as they are essential for the working of basic functionalities of the website. We also use third-party cookies that help us analyze and understand how you use this website. These cookies will be stored in your browser only with your consent. You also have the option to opt-out of these cookies. But opting out of some of these cookies may have an effect on your browsing experience.
Necessary cookies are absolutely essential for the website to function properly. This category only includes cookies that ensures basic functionalities and security features of the website. These cookies do not store any personal information.
Hydrogen Fuel Cell Animation Gifs
Any cookies that may not be particularly necessary for the website to function and is used specifically to collect user personal data via analytics, ads, other embedded contents are termed as non-necessary cookies. It is mandatory to procure user consent prior to running these cookies on your website.Through this website we are seeking historical materials relating to fuel cells. We have constructed the site to gather information from people already familiar with the technology–people such as inventors, researchers, manufacturers, electricians, and marketers. This Basics section presents a general overview of fuel cells for casual visitors.
A fuel cell is a device that generates electricity by a chemical reaction. Every fuel cell has two electrodes called, respectively, the anode and cathode. The reactions that produce electricity take place at the electrodes.
Every fuel cell also has an electrolyte, which carries electrically charged particles from one electrode to the other, and a catalyst, which speeds the reactions at the electrodes.
Fuel Cells Gifs
Hydrogen is the basic fuel, but fuel cells also require oxygen. One great appeal of fuel cells is that they generate electricity with very little pollution–much of the hydrogen and oxygen used in generating electricity ultimately combine to form a harmless byproduct, namely water.
One detail of terminology: a single fuel cell generates a tiny amount of direct current (DC) electricity. In practice, many fuel cells are usually assembled into a stack. Cell or stack, the principles are the same.
The purpose of a fuel cell is to produce an electrical current that can be directed outside the cell to do work, such as powering an electric motor or illuminating a light bulb or a city. Because of the way electricity behaves, this current returns to the fuel cell, completing an electrical circuit. (To learn more about electricity and electric power, visit Throw The Switch on the Smithsonian website Powering a Generation of Change.) The chemical reactions that produce this current are the key to how a fuel cell works.
How Fuel Cells Work
There are several kinds of fuel cells, and each operates a bit differently. But in general terms, hydrogen atoms enter a fuel cell at the anode where a chemical reaction strips them of their electrons. The hydrogen atoms are now ionized, and carry a positive electrical charge. The negatively charged electrons provide the current through wires to do work. If alternating current (AC) is needed, the DC output of the fuel cell must be routed through a conversion device called an inverter.
Oxygen enters the fuel cell at the cathode and, in some cell types (like the one illustrated above), it there combines with electrons returning from the electrical circuit and hydrogen ions that have traveled through the electrolyte from the anode. In other cell types the oxygen picks up electrons and then travels through the electrolyte to the anode, where it combines with hydrogen ions.
The electrolyte plays a key role. It must permit only the appropriate ions to pass between the anode and cathode. If free electrons or other substances could travel through the electrolyte, they would disrupt the chemical reaction.
Fuel Cells Technology Hydrogen Fuel Electricity Natural Gas, Technology, Template, Electronics, Text Png
Whether they combine at anode or cathode, together hydrogen and oxygen form water, which drains from the cell. As long as a fuel cell is supplied with hydrogen and oxygen, it will generate electricity.
Even better, since fuel cells create electricity chemically, rather than by combustion, they are not subject to the thermodynamic laws that limit a conventional power plant (see Carnot Limit in the glossary). Therefore, fuel cells are more efficient in extracting energy from a fuel. Waste heat from some cells can also be harnessed, boosting system efficiency still further.
The basic workings of a fuel cell may not be difficult to illustrate. But building inexpensive, efficient, reliable fuel cells is a far more complicated business.
Best Fuel Cells Gifs
Scientists and inventors have designed many different types and sizes of fuel cells in the search for greater efficiency, and the technical details of each kind vary. Many of the choices facing fuel cell developers are constrained by the choice of electrolyte. The design of electrodes, for example, and the materials used to make them depend on the electrolyte. Today, the main electrolyte types are alkali, molten carbonate, phosphoric acid, proton exchange membrane (PEM) and solid oxide. The first three are liquid electrolytes; the last two are solids.
The type of fuel also depends on the electrolyte. Some cells need pure hydrogen, and therefore demand extra equipment such as a reformer to purify the fuel. Other cells can tolerate some impurities, but might need higher temperatures to run efficiently. Liquid electrolytes circulate in some cells, which requires pumps. The type of electrolyte also dictates a cell's operating temperature–molten carbonate cells run hot, just as the name implies.
Each type of fuel cell has advantages and drawbacks compared to the others, and none is yet cheap and efficient enough to widely replace traditional ways of generating power, such coal-fired, hydroelectric, or even nuclear power plants.
